Specifications

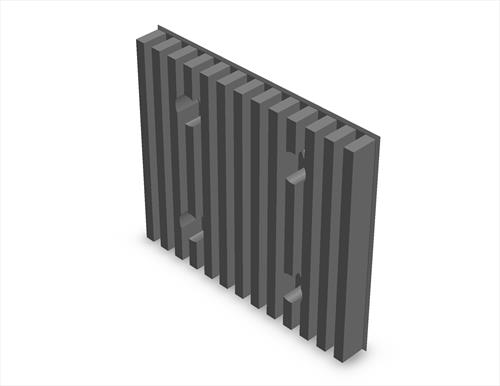

Model Description: Heat Sink (43x50 mm)
Name:Heat Sink (43x50 mm)
Description:5.3 holes arranged in a square (.3 mm tolerance for 5.0 holes) with fins 2.0 mm thickness and 5.0 mm height. Base 43x50 mm.
