Specifications

Supplier part number:	DS1023-2 / PBD
Name:	PBD-4/6/8/10/12/14/16/18/20/22/24/26/28/30/32/34/36/40/42/44/48/50/52/60/64/70/80 (DS1023-2)

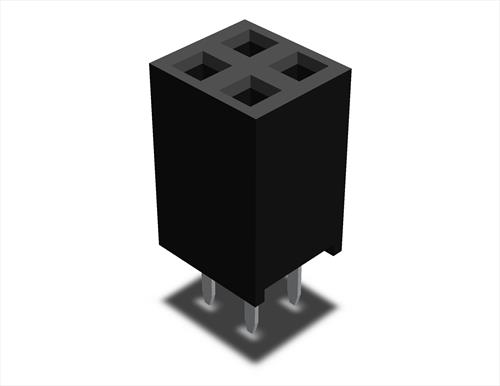

Description:	PBD-4(2x2), PBD-6(2x3), PBD-8(2x4), PBD-10(2x5), PBD-12(2x6), PBD-14(2x7), PBD-16(2x8), PBD-18(2x9), PBD-20(2x10), PBD-22(2x11), PBD-24(2x12), PBD-26(2x13), PBD-28(2x14), PBD-30(2x15), PBD-32(2x16), PBD-34(2x17), PBD-36(2x18), PBD-40(2x20), PBD-42(2x21), PBD-44(2x22), PBD-48(2x24), PBD-50(2x25), PBD-52(2x26), PBD-60(2x30), PBD-64(2x32), PBD-70(2x35), PBD-80(2x40) / DS1023-2 Double line connectors with 2.54mm step. Height are 8.5mm and 5 mm
Supplier name:	Connfly electronic Co
Supplier part number:	DS1023-2 / PBD
