Supplier part number:	SG08450N
Name:	Metal dome switch

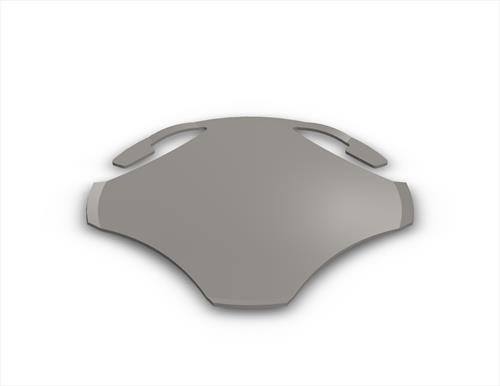

Description:	Snaptron’s S-Series domes are standard four-leg metal dome switches with two solderable tabs. The tabs allow the dome to be soldered directly to a printed or flex circuit board.
