Specifications
Supplier part number: HOERBIGER HAWE.
Name:HOERBIGER HAWE PIL series proportional directional valve.

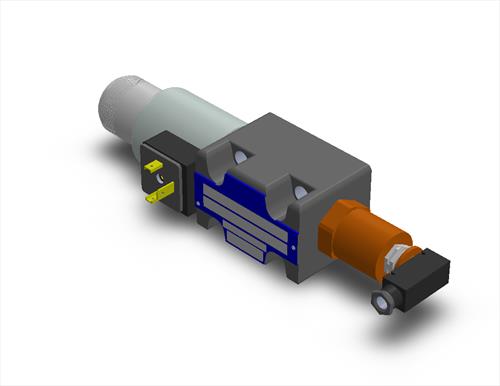

Description:The PIL500PC06P12 is a HOERBIGER HAWE PIL series proportional directional valve, designed for precise control of oil flow in hydraulic systems. ⚙️ Key technical specifications Based on product data and related model documentation, here are its confirmed and likely specifications: Parameter Value Type PIL500PC06P12 (also listed with type code HV06452) Function Proportional directional valve with electrical actuation Max. Operating Pressure 350 bar Max. Flow Rate 12 L/min Voltage 24 V DC Nominal Current 0.8 A Power Consumption 14 W Hydraulic Connection Subplate mounting (NG06 / CETOP 03) Weight Approx. 2.5 kg 🔧 Interpreting the model code The model number breaks down as follows: PIL: Indicates the valve is a proportional directional spool valve with an inductive position transducer (electrical position feedback). 500: Likely a series identifier. PC06: Refers to the NG06 (nominal size 6) mounting standard. P12: Indicates a maximum flow rate of 12 L/min.
